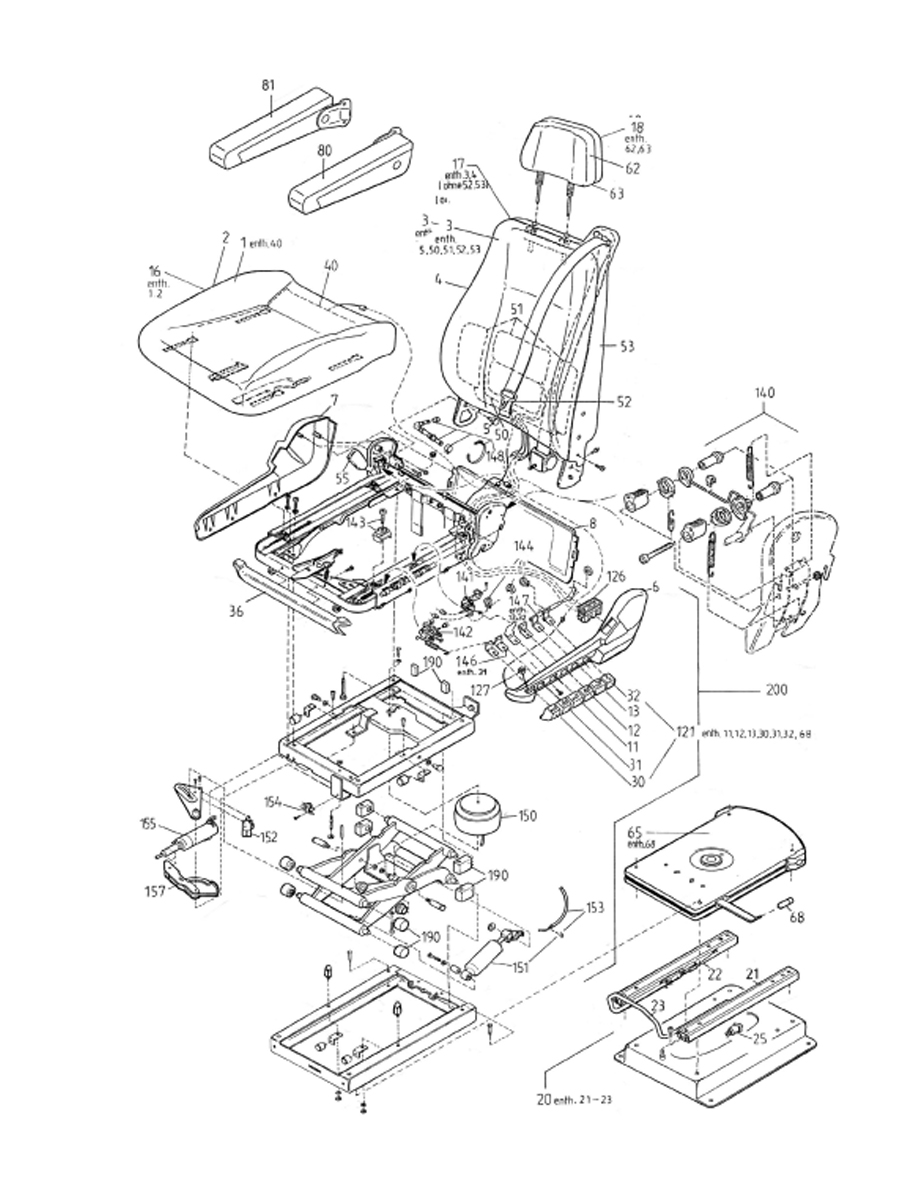

ISRI 6800/337 LH Technical Drawing
£POA
| Pos | Description | Manufacturer number |
|---|---|---|
| 1 | Seat part complete | 111632-01 (Untrimmed) |
| 2 | Cover for seat part | VB00020001 |
| 3 | Back part assembled LH | 921809-03 |
| 4 | Cover for back part | VB00010001 |
| 6 | Side cover left | 02059-03 |
| 7 | Side cover right | 02062-01 |
| 8 | Rear cover | 929527-62 |
| 16 | Seat part complete | 922286-01 |
| 17 | Back part complete | 922287-01 |
| 20 | Sliding seat guide complete | 921808-04 |
| 25 | Residual pressure valve complete | 924031-01 |
| 36 | Front cover | 23992-02 |
| 51 | Air chamber | 111441-01 |
| 52 | 3 Point seat belt LH | 17223-06 |
| 53 | Back cover LH | 310693-01 |
| 55 | Belt buckle complete | 36671-02 |
| 62 | Adjustable headrest | 19370-06 |
| 121 | Handles for 6800/337 | 914868-37 |
| 123 | Bellows with fastening material | 918448-08 |
| 126 | LWS/IPS Valve complete LH | 25426-03 |
| 140 | Backrest recline kit LH | 914500-10 |
| 141 | Height rise valve kit LH | 914514-01 |
| 142 | Blocking (dump) valve | 914514-04 |
| 143 | Cushion slides | 914516-05 |
| 144 | Handle retaining clips | 915107 |
| 146 | Blocker (dump) handle kit | 914501-33 |
| 147 | Lever for backrest adjuster LH | 914501-34 |
| 148 | Bypass valve | 924033-01 |
| 150 | Air bag | 98872-15 |
| 151 | Adjustabel damper kit | 98889-01 |
| 152 | Regulator level control valve | 98873 |
| 153 | Variable damper cable LH | 915109 |
| 154 | Diverter valve | 915105-01 |
| 155 | Air cylinder | 95486-04 |
| 156 | Pipe connectors / hoses kit | 911147-02 |
| 157 | Control disc complete | 33487 |
| 190 | Scissor bearing kit | 911121-11 |
