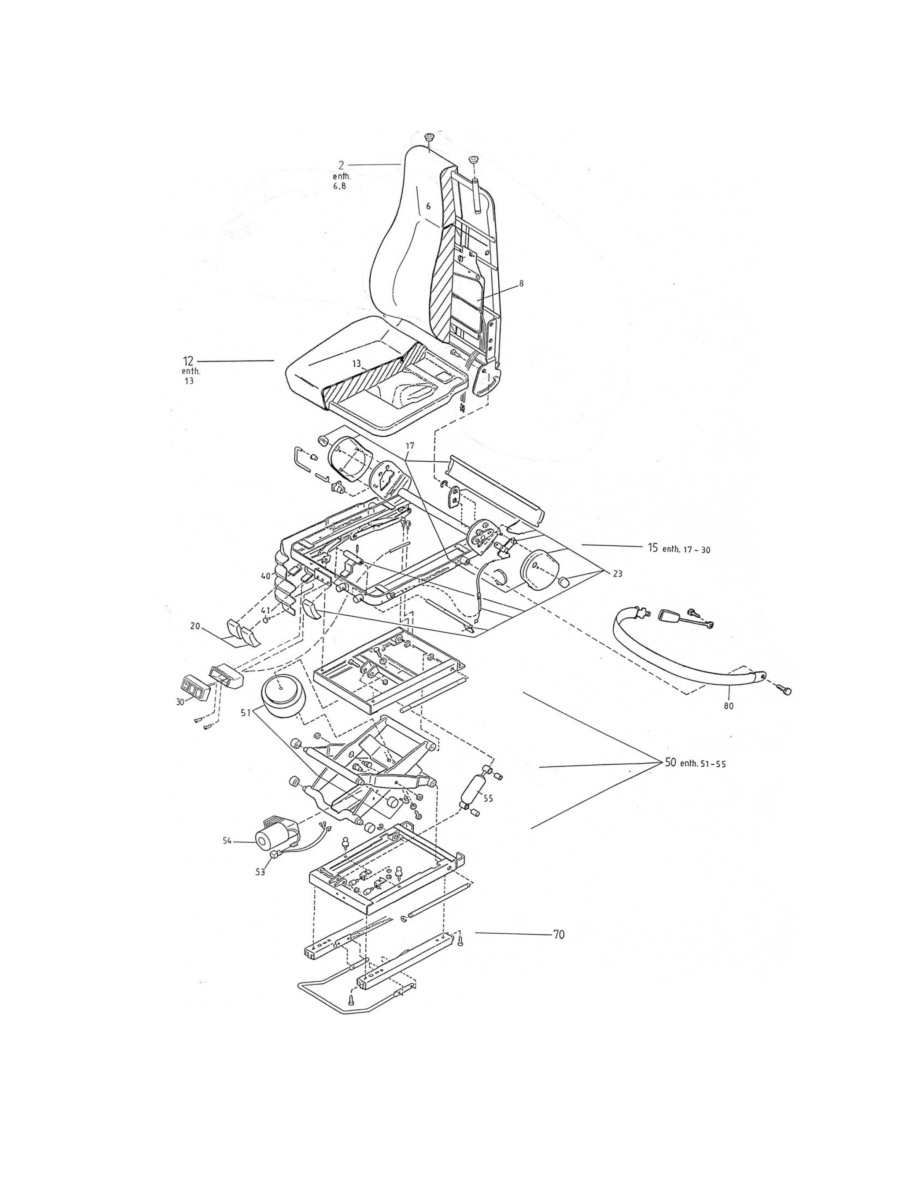

ISRI 6500KM/577 Technical Drawing

£POA

Pos Description Manufacturer number
2 Backrest 13630-09
8 Backrest cover 913841-08
12 Seat cushion 16946-52
13 Cushion cover 923012
15 Seat frame, mont. lh. OT575 924026-23
17 Cover caps 918322-07
20 H.A.T. – Handles, height & incl 915015-05
23 Backrest notch, 575, cpl. lh. 98895-09
30 Valve for weight + lumbar support 913844-11
40 Rubber bellows 00986-31
41 Fixation kit for rubber bellows 98781-01
50 ISRI 6500 Suspension unit 111376-02
51 Air spring 92441-03
53 RELAY (24volt) 60643
54 Compressor with accessories kit 24V 914329-03
55 Shock absorber kit 927297-49
70 Slide rails 216mm 18755-01
