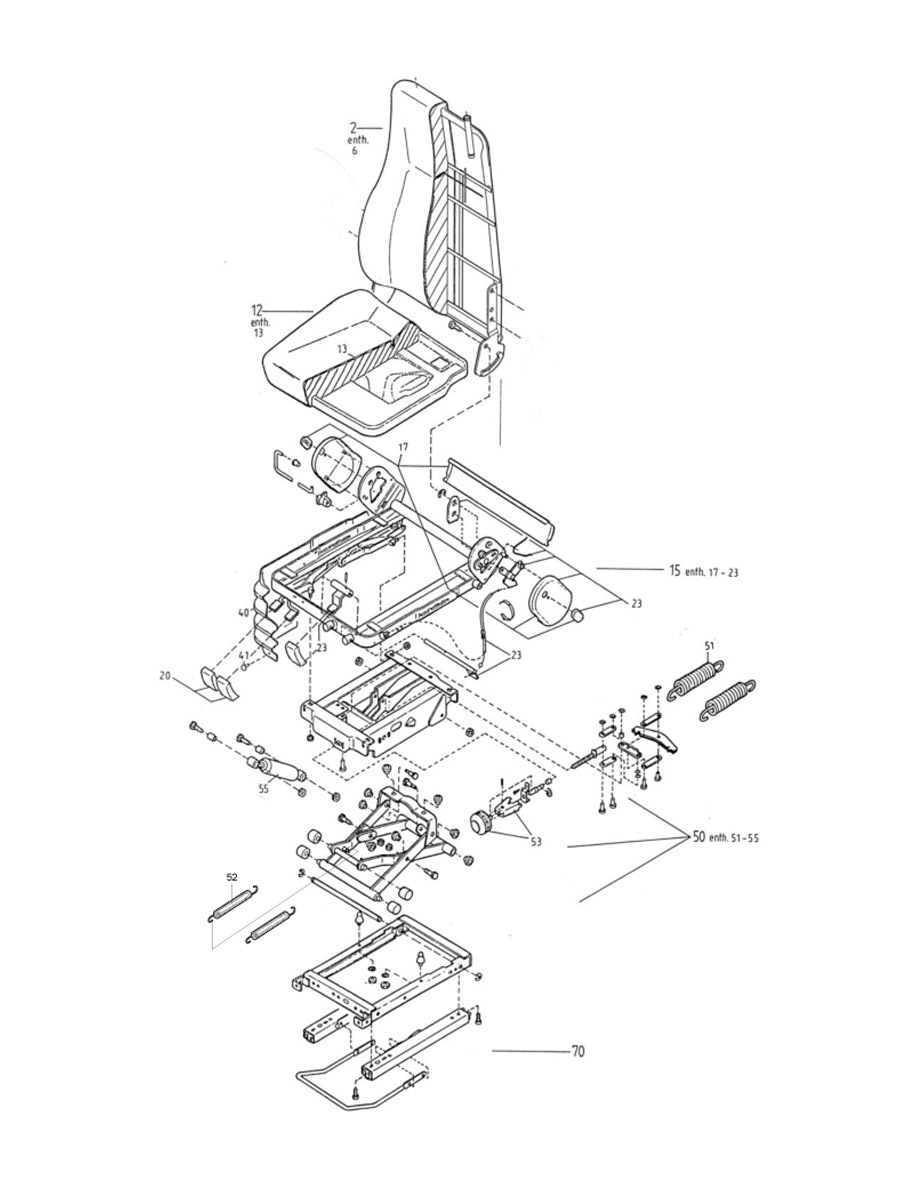

ISRI 6000/577 Technical Drawing
£POA
Pos | Description | Manufacturer number |
---|---|---|
2 | Backrest cushion, cpl. li. OT577 | 16637-13 |
6 | Backrest cover | 923382 |
12 | Seat cushion, cpl. OT515 | 16946-52 |
13 | Seat cushion cover | 923012 |
15 | Seat frame, mont. lh. OT575 | 02933-02 |
17 | Cover caps | 918322-07 |
20 | H.A.T. – Handles | 915015-05 |
23 | Backrest notch, 575, cpl. lh. | 98895-09 |
40 | Bellow | 00986-31 |
41 | Fixing material | 98781-50 |
50 | ISRI 6000 – Suspension unit | 113702-01 |
51 | Tension spring | 42331D |
52 | Tension spring | 43087D |
53 | Handwheel | 35118 |
55 | Shock absorber, cpl. | 927297-49 |
70 | Slide rails | 18755-01 |
