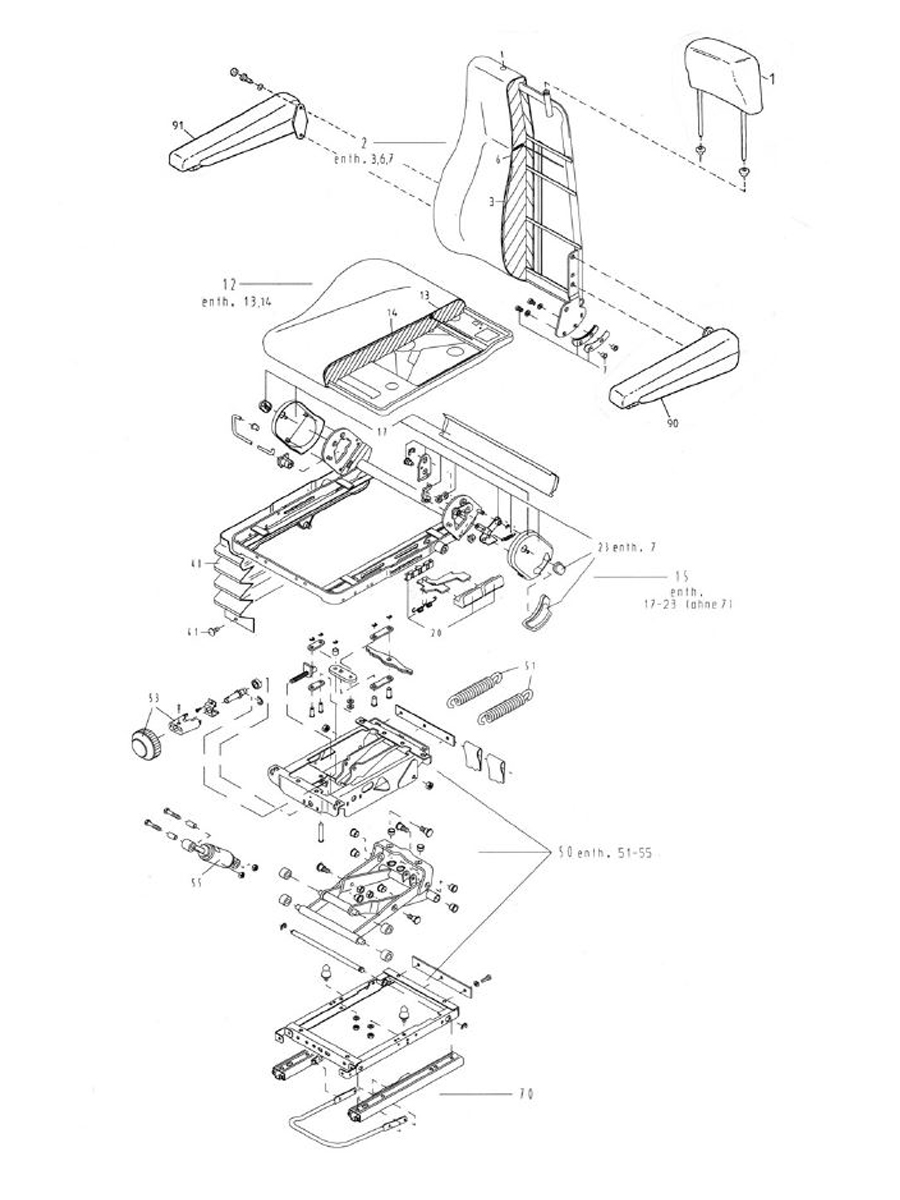

ISRI 6000/517 Technical Drawing
£POA
| Pos | Description | Manufacturer number |
|---|---|---|
| 1 | Headrest | 16215-47 |
| 2 | Backrest LH | 17746-20 |
| 6 | Backrest cover | 923102 |
| 12 | Seat cushion | 16946-52 |
| 13 | Seat cushion cover | 923012 |
| 15 | Seat frame LH OT575 | 18749-01 |
| 17 | Cover kit LH | 918322-04 |
| 20 | Handles set LH | 915015-05 |
| 23 | Backrest locking LH | 98895-05 |
| 40 | Rubber bellow (suspension cover) | 00989-80 |
| 41 | Fixing kit for the rubber bellow | 98781-01 |
| 50 | ISRI 6000 – Suspension unit | 18723-02 |
| 51 | Tension spring | 41933D |
| 52 | Tension spring | 43087D |
| 53 | Handwheel | 21268 |
| 55 | Shock absorber | 94041-56 |
| 70 | Slide rails 216mm | 18755-01 |
