VW Crafter/MAN TGE 2017 + Single Seat Swivel BaseÂ
Out of stock.
Trade customers, please enquire about our discounted trade price list.
This is a heavy duty, low profile genuine FASP turntable swivel base.
Fitment notes:
- The seat sliders have locating pins on them which require cutting off to allow the seat to seat flat on the swivel. Alternatively you can drill an additional set of holes in the swivel to allow the pins to sit in.
Passenger side swivel (SX) rotates clockwise.

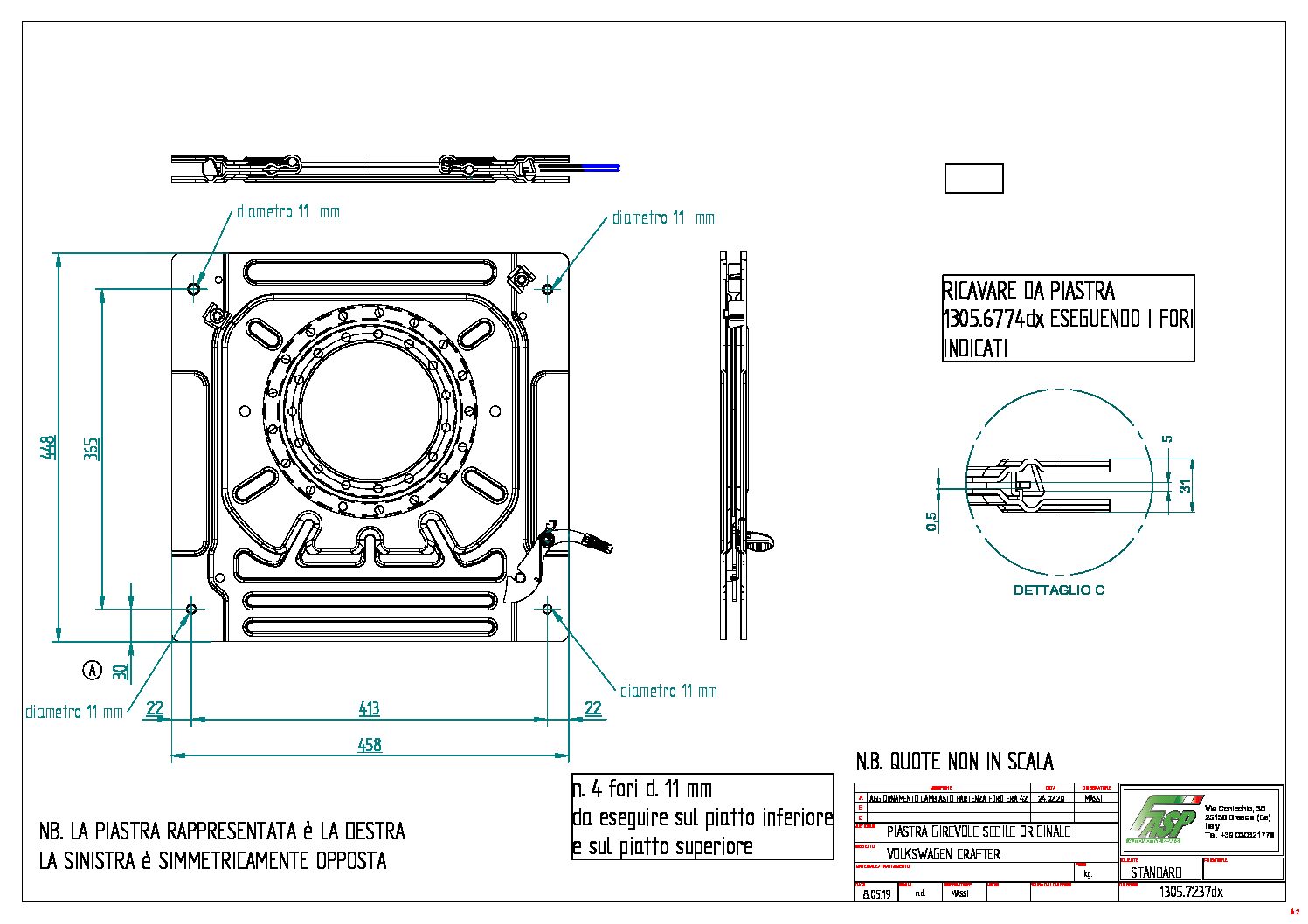

Pictures for reference only. 1305.7237 Downloadable dimensions
Fitting instructions
This swivel is not suitable for the 2007-2017 model Crafter.
Weight: 10KG
Hole Centres: 413 (side to side) x 365 (front to back)
Height: 30mm
Product Code: 1305.7237SX
We also supply captains seats and many other seating solutions which you can view here
If you do not see what you need, please call us on 01270 257417 or try our dedicated motorhome seating a swivel website www.swivel-seats.com
